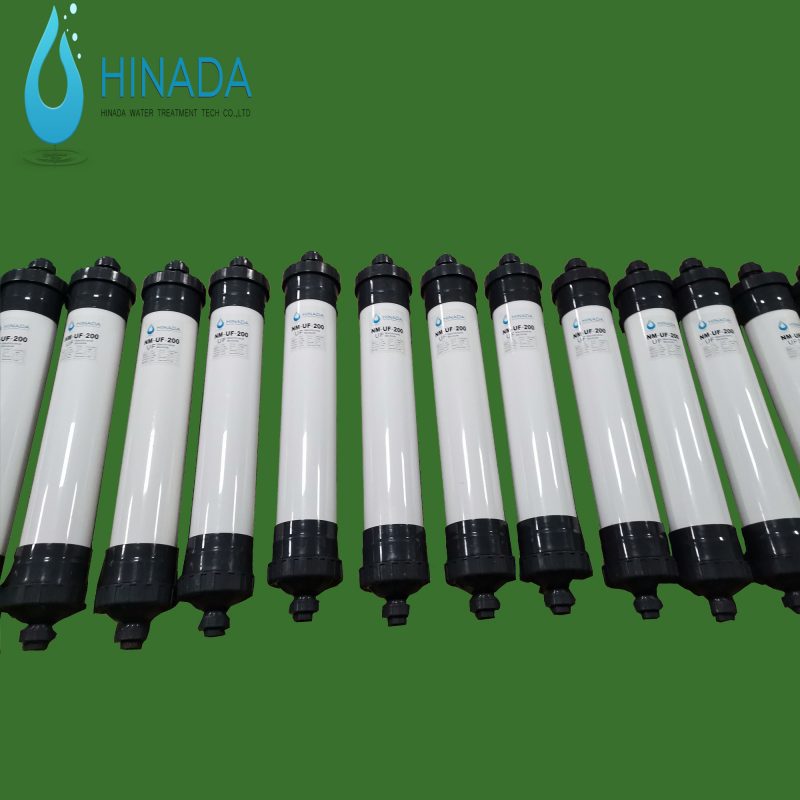

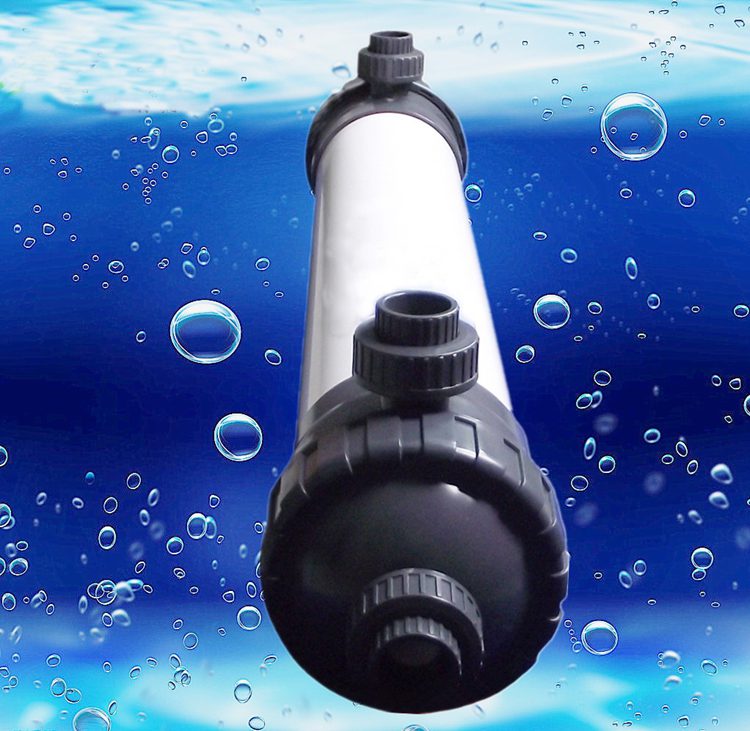

Ultrafiltration Membrane NM-UF-200
Model: NM-UF-200
NM-UF-200 Permeate Water Quality:
Suspended Matter ＞2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.2NTU
SDI of output clean water: ≤ 2.5
Descriptions:
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.

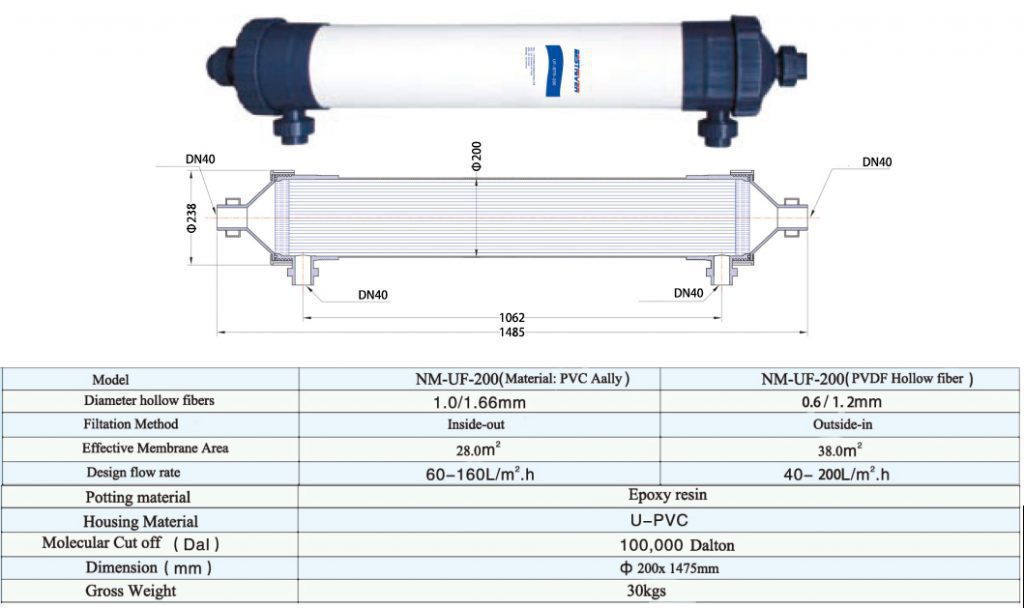

Ultrafiltration Membrane (NM-UF-200) Specification
Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.
Hinada, with over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.
| Hollow fibers | PVDF | PVC |
| Pre – filtration | 50-150 um | 50-150 um |
| Max turbidity of inlet water | ≤50 NTU | ≤15 NTU |
| Hollow fibers I/O diameter | 0.6 /1.2mm | 1.0 /1.96mm |
| Design flow rate | 2000—4000L/ Hour | 1000—2000L/ Hour |
| Housing Material | U-PVC | U-PVC |
| Membrane Area | 38m² | 28m² |
| Filtration | Outside-in | Inside-out |
| Max inlet water pressure | 0.45 MPa | 0.45 MPa |
| Max pressure difference of transmembrane | 0.25 MPa | 0.25 MPa |
| Applicable PH range | 2- 13 | 2- 13 |
| Tolerable continuous residual chlorine | 100 PPM | 100 PPM |
| Tolerable interval residual chlorine | 200 PPM | 200 PPM |
| Backwash Interval | Every half hour | Every half hour |
| Backwash time | 30-60sec | 30-60sec |
| CIP Backwash | Every 30-90day | Every 30-90day |
| CIP Chemical | NaClO, NaOH liquid | NaClO, NaOH liquid |
| Model | NM-UF-200(Material: PVC allay) | NM-UF-200 (Material: PVDF) |
| Diameter of Hollow fibers | 1.0/1.96mm | 0.6/1.2mm |
| Filtration Method | Inside-out | Outside-in |
| Effective Membrane Area | 28m² | 38m² |
| Design Flow rate | 60—160L/m².H | 60—160L/m².H |
| Potting Material | Epoxy resine | Epoxy resine |
| Housing Material | U-PVC | U-PVC |
| Molecular Cut off( Dal) | 100,000 Dalton | 100,000 Dalton |
| Dimensions(mm) | ø 200*1485mm | ø 200*1425mm |
| Gross Weight | 7.0kgs | 7.0kgs |
| Feature | Price more reasonable, for clean water filtration that the input turbidty better less than 15NTU. | High anti-pollution and better flow rate, the input burbidty better less than 50NTU. |
Ultrafiltration Membrane (NM-UF-200) Application
*Industries water purpose: Such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment.
*In drinking water purpose: Ultrafiltration membrane system can be used for the removal of particulates and macro-molecules from raw water to produce potable water, especial for surface water, spring water, river water, lake water treatment purpose.
River water to Drinking Water UF Technology Hinada
*Protein Concentration: UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Ultrafiltration Membrane (NM-UF-200) Packaging
Paper carton pack, gross weight: 30kgs/ unit
Dimension: 150* 25*30cm
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
