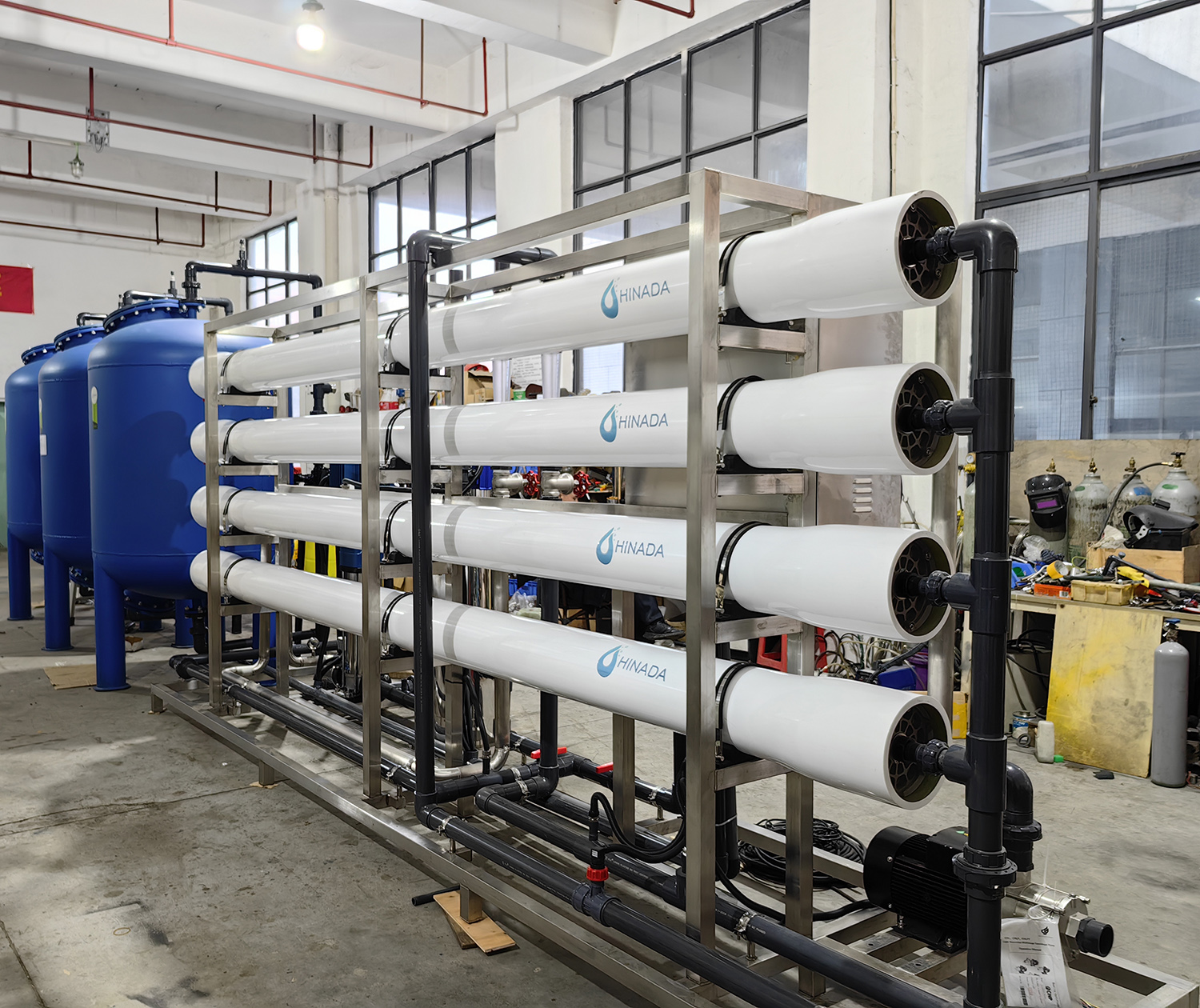

20KLPH Industrial Nano Filtration System Customized
* Feed Water Pump
* Pretreatment Filter ( Multi-media filter)
* Cartridge filter
* High pressue pump
* Nano Membrane
Description
Designed to convert high TDS saline content to drinking water, these systems use high quality Nano Filtration membranes, the TDS Reject rate around 30–65%, depends on different liquid filtration and requirement, These systems use our proven technology to give reliable performance and meet the demanding requirements.
20KLPH Purification Nano Filtration System Includes :
* Feed Water Pump
* Pretreatment Filter ( Multi-media filter or Carbon Filter or Softener with Filter Controller )
* Cartridge filter
* High pressue pump
* Nano Filtration Membrane HNDNF-8040
* Electrical Control Panel
* Conductivity Meter and Pressure Gauges, Flow Meters
* RO System Racking, PVC & Stainless Steel Pipes
| 20KLPH NANO System Operating Limit | NANO Membrane Specifications | |||
| Recovery | 60—75% | Type | TFC (Thin Film Composite) | |
| Operating Temperature | ≤50℃ | Material | PA (Polyamide) | |
| Operating Pressure | ≤20Bar | Charge | Negative | |
| Electrical Power | Optional | Configuration | Spiral-Wound, FRP Wrapping | |
| Max. SDI (15 min) | ≤5.0 | Membrane Size | Diameter 8”x Length 40” | |
| pH range | 3–10 | Effective Area | 37.2m² | |
| Feed Max. Turbidity | ≤1.0 NTU | Flow rate | 45m³/Day | |
| Chlorine Concentration | ≤0.1pm | Rejection (%) | 30—60% | |
The Water Treatment Process:
The Photo of the Main Parts
_cuva
Any further information, please don’t hesitate contact with us.
Application
Designed to convert high TDS saline content to drinking water or other industry application, these systems use high quality RO reverse osmosis seawater desalination membranes. These systems use our proven technology to give reliable performance and meet the demanding requirements of the marine environment.
From Water makers to drinking water, we offer a few range of Water Desalination Reverse Osmosis Systems—-Compact water maker and Commercial water RO System.
Information requirement for quotation
Reverse osmosis is most commonly known for its use in drinking water purification or other industry application from seawater, removing the salt and other effluent materials from the water molecules.
The basic information of your project requirement for factory:
- What’s the input raw water quality ( or know the TDS value) ?
- What’s the output usage (Application for drinking or other purpose)?
- What’s the capacity per hour?
Hinada has more that 10 years experience, skilled worker and professional engineers, good reputation.
Any inquiry or questions please send to us.
Package
High TDS Desalination Equipment RO Plant will be packaged in plywood case according to requirement.
Our Service
* Hinada is the leading manufacturer of RO System water filtration.
* Supply the completely RO plant
* Installation service
* Commissioning
* After-sales service and online training service
- Description:
Description
Designed to convert high TDS saline content to drinking water, these systems use high quality Nano Filtration membranes, the TDS Reject rate around 30–65%, depends on different liquid filtration and requirement, These systems use our proven technology to give reliable performance and meet the demanding requirements.
20KLPH Purification Nano Filtration System Includes :
* Feed Water Pump
* Pretreatment Filter ( Multi-media filter or Carbon Filter or Softener with Filter Controller )
* Cartridge filter
* High pressue pump
* Nano Filtration Membrane HNDNF-8040
* Electrical Control Panel
* Conductivity Meter and Pressure Gauges, Flow Meters
* RO System Racking, PVC & Stainless Steel Pipes20KLPH NANO System Operating Limit NANO Membrane Specifications Recovery 60—75% Type TFC (Thin Film Composite) Operating Temperature ≤50℃ Material PA (Polyamide) Operating Pressure ≤20Bar Charge Negative Electrical Power Optional Configuration Spiral-Wound, FRP Wrapping Max. SDI (15 min) ≤5.0 Membrane Size Diameter 8”x Length 40” pH range 3–10 Effective Area 37.2m² Feed Max. Turbidity ≤1.0 NTU Flow rate 45m³/Day Chlorine Concentration ≤0.1pm Rejection (%) 30—60% The Water Treatment Process:
The Photo of the Main Parts
_cuva
Any further information, please don’t hesitate contact with us.
- Application
Application
Designed to convert high TDS saline content to drinking water or other industry application, these systems use high quality RO reverse osmosis seawater desalination membranes. These systems use our proven technology to give reliable performance and meet the demanding requirements of the marine environment.
From Water makers to drinking water, we offer a few range of Water Desalination Reverse Osmosis Systems—-Compact water maker and Commercial water RO System.
- Benefits
Information requirement for quotation
Reverse osmosis is most commonly known for its use in drinking water purification or other industry application from seawater, removing the salt and other effluent materials from the water molecules.
The basic information of your project requirement for factory:
- What’s the input raw water quality ( or know the TDS value) ?
- What’s the output usage (Application for drinking or other purpose)?
- What’s the capacity per hour?
Hinada has more that 10 years experience, skilled worker and professional engineers, good reputation.
Any inquiry or questions please send to us.- Package
Package
High TDS Desalination Equipment RO Plant will be packaged in plywood case according to requirement.
- Our Service
Our Service
* Hinada is the leading manufacturer of RO System water filtration.
* Supply the completely RO plant
* Installation service
* Commissioning
* After-sales service and online training service- RO System Video
Nano Membrane Specification
| Model | Area | Average Water Permeate | Avg MgSO4 Rejection% | Avg NaCl Rejection% | Testing Pressure (MPa) |
| HNDNF -8040 | 37.2 m² | 12000 GPD (45.0m³/D) | >98% | 30—60% | 0.5—0.75MPa |
Nanofiltration refers to a specialty-membrane process that rejects dissolved solutes in the approximate size range of 1 nanometer (10 Angstroms) — hence the term “nanofiltration.”
With respect to the size and weight of solutes that nanofiltration membranes reject, NF operates in the realm between reverse osmosis (RO) and ultrafiltration (UF) : Organic molecules with molecular weights greater than 200 – 400 are rejected, and especially for divalent metallic and organic molecules can effectively reject among other contaminants:
- De-coloration and low-down hardness
- Dissolved organics.
- Endotoxins/pyrogens.
- Insecticides/pesticides.
- Herbicides.
- Antibiotics.
- Nitrates.
- Sugars.
- Latex emulsions.
- Metal ions.
It also rejects certain soluble salts. Specifically, NF rejects dissolved salts in the range of 20 – 98 percent. Salts which have monovalent anions (e.g., sodium chloride or calcium chloride) have rejections of 20 – 60 percent, whereas salts with divalent anions (e.g., magnesium sulfate) have higher rejections of 90 – 98 percent. Transmembrane pressures are typically 50 – 225 psi (3.5 – 16 bar).
The ideal nanofiltration membrane has a very high-water permeability, but the ideal permeability of solutes might be near zero or some higher value, depending on the solute and application. For example, an application may require near-zero permeability for pesticides and 50 percent permeability for calcium ions.
Typical applications of nanofiltration membrane systems include:
- The removal of color and total organic carbon (TOC) from surface water.
- The removal of hardness or radium from well water.
- The overall reduction of total dissolved solids (TDS).
The separation of organic from inorganic matter in specialty food and wastewater applications.
